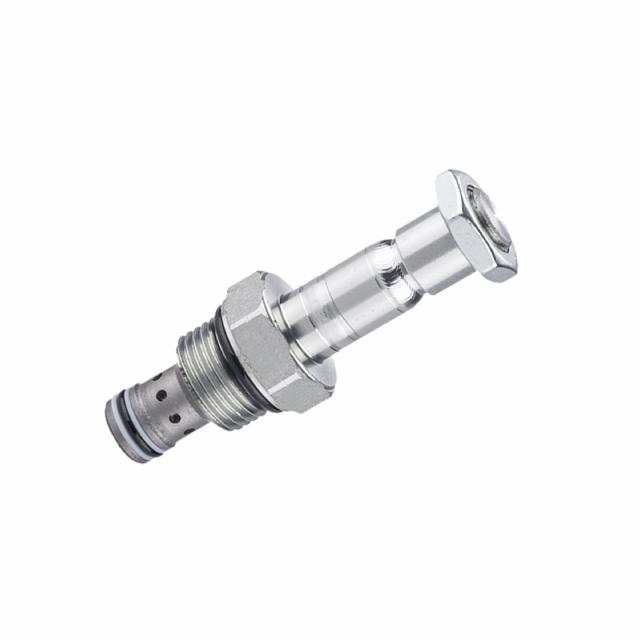

08 Cartridge valve NC, 23 Ltr
SV08-20-0-N-0
SRP
46,37 EUR
49 Products available in stock
Specifications
| Description DAN | 08 Patronventil NC 23 lpm |
|---|---|
| Weight | 0.09 kg |
| Max Working Pressure | 207 bar |
| EAN | 5711910233147 |
| Cartridge Quality | VC08-2 |
| Flow Max | 25 l/min |
| Pressure Max | 207 bar |
| Symbol | 1 |
| Tightening Torque For Cartridge Valve | 27,1Nm Nm |
| Tightening Torque Of Nut For Coil | 6,8 Nm Nm |
| Blocks Must Be Ordered Separately | NCS41/VC08-2 |
| Coil Must Be Ordered Separate | H4 |
| Oil Viscosity | 7,5-420 mm²/s |
| Temperature Range | -40° - 120° C° |
| Normally open/Normally closed | Normally closed |
| Voltage Tolerance | +/- 15% |
| Weight | 0,09 kg |
